HSR.4B Labelling & Packaging

HSR.4B Labelling & Packaging

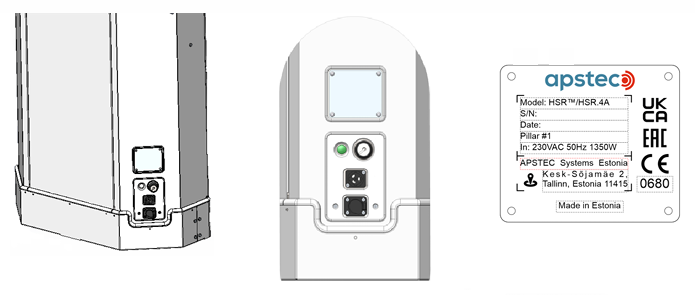

Example of label placement on the pillar

​


Device Labelling

Each HSR pillar has an identical label containing:

  • Manufacturer trademark “APSTEC”

  • Product name and serial number

  • Power consumption details

  • Pillar number

  • Production date and location

​

Packaging & Handling

Use only the two original wooden boxes designed for HSR transport and storage. Using other packaging may cause damage. Avoid collisions and impacts when packing or moving the system.
​

Shipping Labels

Boxes must be marked with: UP, FRAGILE, KEEP DRY.
