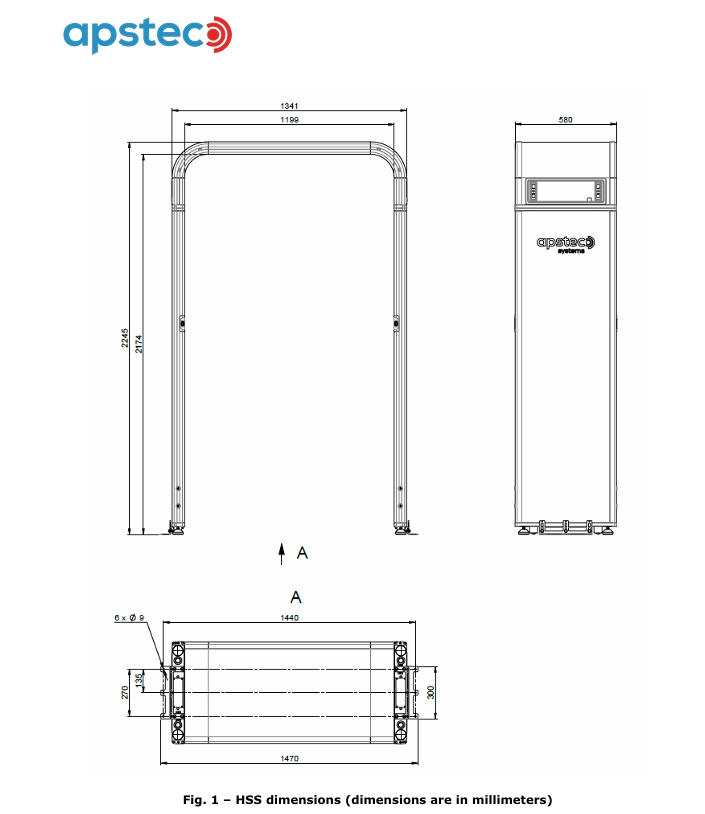

HSS.2A DIMENSIONS
- External dimensions - 2245 mm х 1341 mm х 580 mm
- Required minimal space for HSS
installation - 1.8 m x 1.5 m
- Passage width - 1.2 m
The Inspection zone of HSS system
