HSS.2A INSPECTION ZONE CONFIGURATION
The inspection zone is the area a person walks through during screening. The HSS system collects data from the moment a person enters the zone until they exit. Once a person leaves the zone, the inspection is considered complete.
To improve efficiency, it’s recommended to guide people through the zone using barriers, tape, or other flow control methods.
The placement of flow barriers must be approved by APSTEC technical support before use.

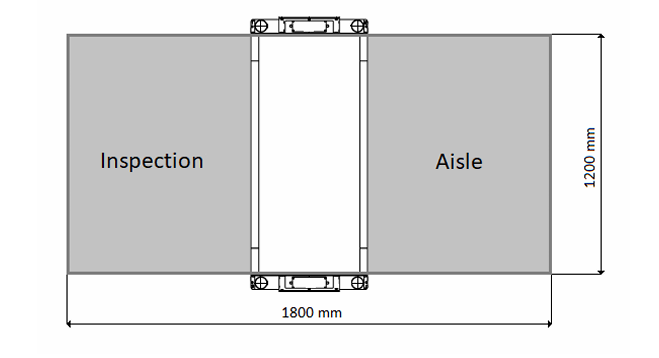

HSS inspection zone layout
