HSS.2A OPERATING

HSS.2A OPERATING

Preparing for Operation:

  1. Inspect the HSS pillars – check for any visible mechanical damage.

  2. Make sure the built-in camera lenses are not damaged or obstructed.

  3. Check the inspection zone – there should be no objects or people inside.

  4. Start up the operator’s PC or tablet.


Switching on the System:

  1. Ensure the HSS is connected to the AC power supply.

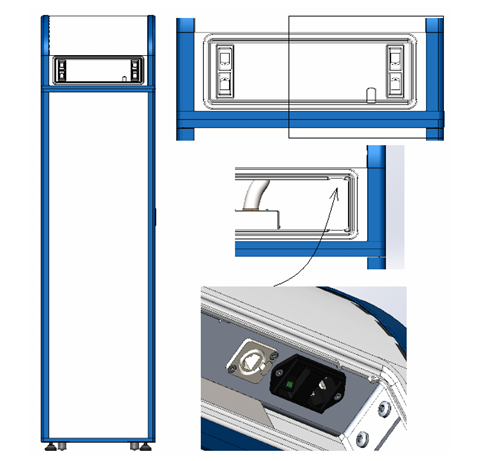

  2. Press the power button (see photo below).


The start button is located under the protective hatch on the arch


Notes
The system requires at least 5 minutes to stabilize.
Notes
It is recommended to restart the HSS once a week during continuous operation.


HSS Client Software:

  • The operator uses a PC or tablet to control the system.

  • The software displays system status, alarms, and target images.


How the System Works:

  • When a person enters the inspection zone, the system automatically checks for threats.

  • If a threat is detected:

    • An alert is sent to the operator’s PC or mobile device.

    • A photo of the person is taken and the target is marked with a colored frame.

    • An audio signal or vibration is triggered.

    • A red light is activated on the LED strips of the device.
