HSS.2A RECEIVER PERFORMANCE CRITERION

HSS.2A RECEIVER PERFORMANCE CRITERION

The Service Interface software allows you to check how well the device receivers are working.

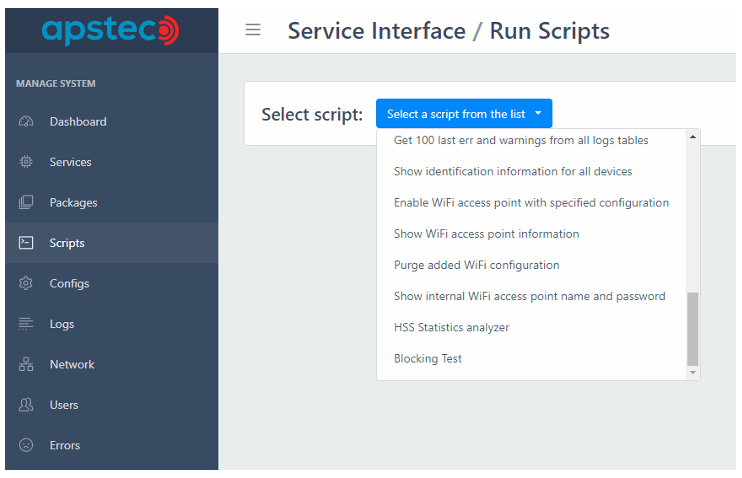

To do this, open the Scripts tab.


In the drop-down list, choose Blocking Test.



You can run the test separately for each pillar.

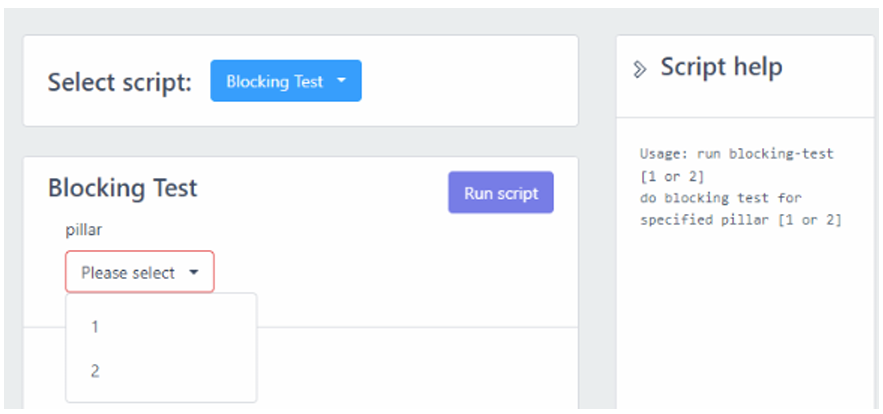

Choose the required pillar (1 or 2) from the list, then click Run script.

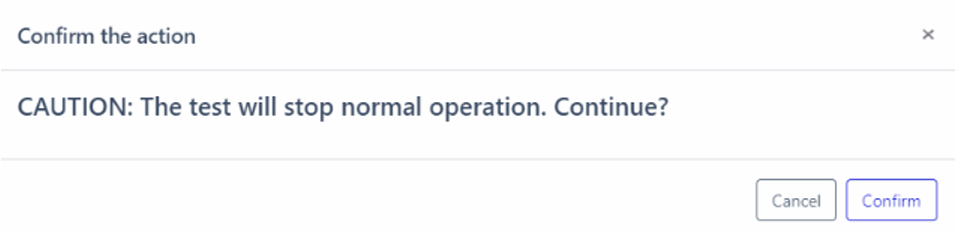

A warning message will appear saying that the test will stop normal system operation.
Click Confirm to continue.

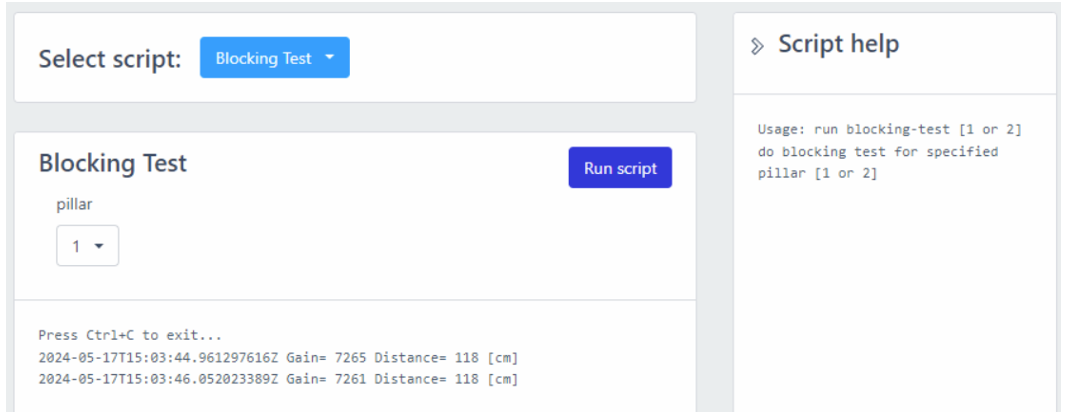

The system checks the signal quality at the receivers by measuring the distance between the transmitter and receiver.

The expected standard distance is 126 cm.
If the result differs by more than 10% (i.e. less than 113.5 cm or more than 138.5 cm), it may indicate a problem.

If the result is within this range, the receivers are working correctly.
