Apstec Merlin: Main Technical Characteristics
Here is the breakdown of the core technical parameters and operational specifications for the Apstec Merlin system.
π Technical Specifications
| Parameter | Value |
| Voltage | 100β240 VAC, 50β60 Hz |
| Rated Maximum Input (AC) Power | 120 W |
| Net Weight | 60 kg |
| IP Rating | 4x |
| External Dimensions | 2246 mm Γ 1341 mm Γ 580 mm |
| Minimum Installation Space | 2580 mm Γ 1500 mm |
| Passage Width | 1.2 m |
| Operating Hours | Continuous, 24/7 |
| Analysis Speed | Real-time |
| Automatic Decision-Making | Yes |
π Operational Notes
As part of ongoing research and development, specifications may change without prior notice.
Technical specifications may vary slightly depending on the country of use.
APSTEC Systems reserves the right to modify the design, construction, or operating software of the Apstec Merlin system at any time. These updates may not be explicitly reflected in this document but do not affect the systemβs technical performance or compliance.

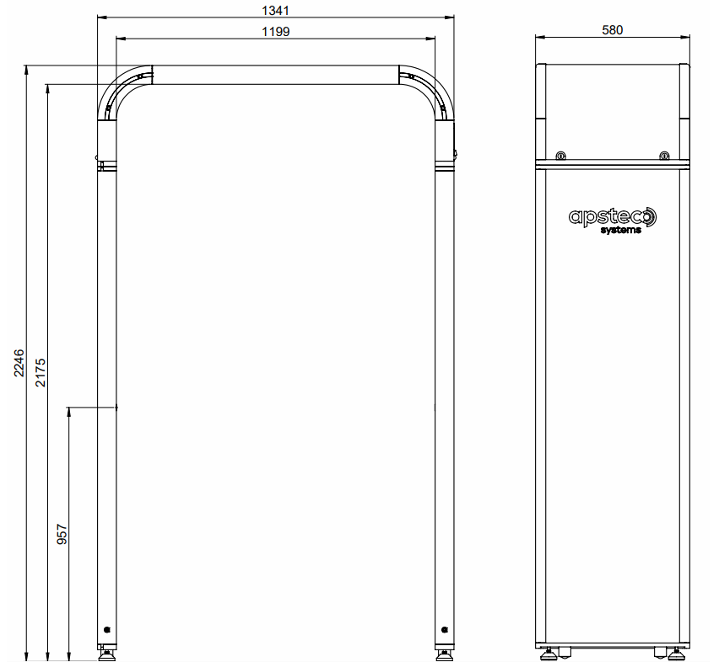

DMD dimensions (dimensions are in millimetres)
