HSS.2A ALARM SIGNALS AND ALERTS

HSS.2A ALARM SIGNALS AND ALERTS

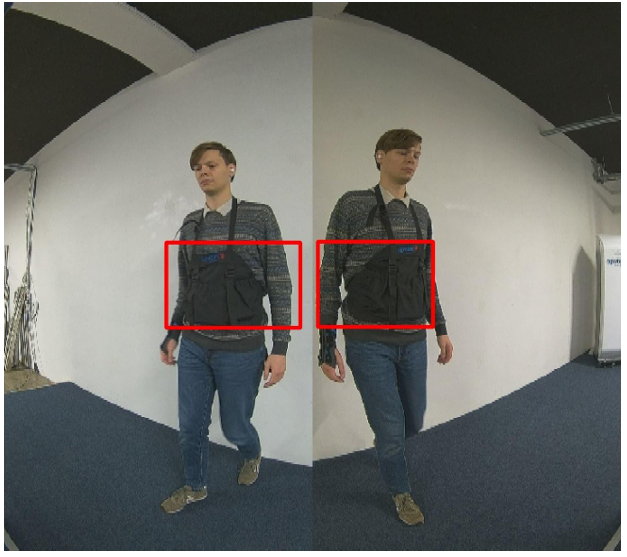

In radio wave operation mode, an alarm is triggered if an object is identified as potentially dangerous based on the analysis of reflected radio waves. The detected area is highlighted with a red rectangle

Example of an alarm in radio wave operation mode




Notes
The photos are stored locally on the device and are not transmitted or processed by third parties. The user can delete them at any time.

The alarm signals are displayed on the operator’s screen. The HSS system detects objects that resemble explosives or IEDs based on their shape and material.

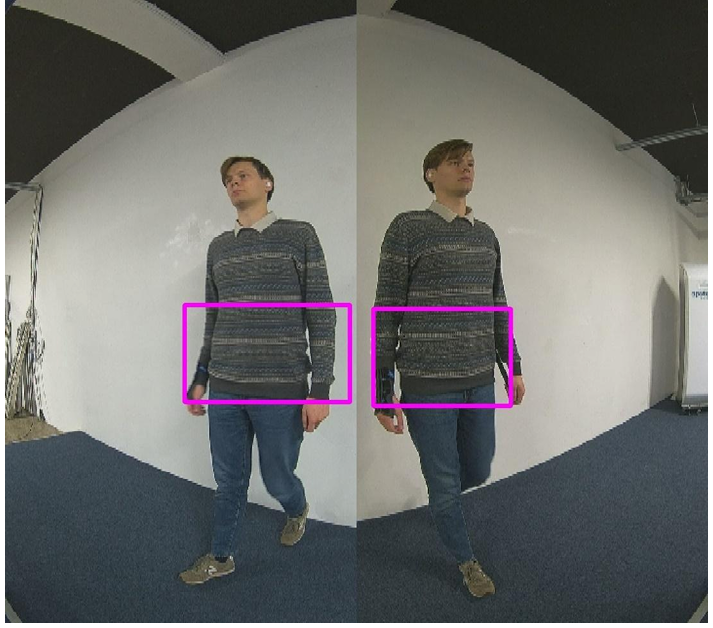

In the metal detection mode, an alarm is triggered if a suspicious metal object is detected inside the inspection zone. The alarm area is highlighted with a violet frame.

Example of a metal alarm on a computer display
