HSS.2A DESKTOP ALARM MONITOR CLIENT

HSS.2A DESKTOP ALARM MONITOR CLIENT

The Desktop Alarm Monitor Client is launched by double-clicking the APSTEC shortcut on the desktop.

Shortcut for launching the Desktop Alarm Monitor Client


​
First launch

When starting the program for the first time:

  1. Enter the server address

  2. Enter login and password (provided by Apstec)

  3. After logging in, the Systems window will appear

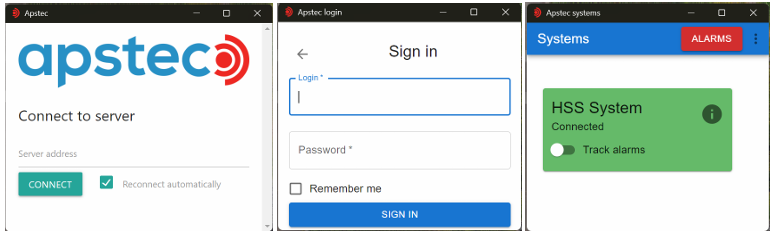

Login and connection window of the Desktop Alarm Monitor Client



Systems window

Shows all connected HSS systems. Contains buttons:

  • Activate alarms – turns on alarm image display

  • Alarms – opens a window with alarm images from active systems

  • Info – opens the user manual

  • Service – allows editing system address and settings

​

System status colors

Green – system is working normally

  • Grey – system is disconnected

  • Yellow – system is unreachable, not configured, or stopped (e.g. during maintenance)

If the status remains yellow or grey after updates, contact Apstec technical support.

Each HSS system has a unique ID assigned during installation by the end user.



Alarm image window

When an alarm is triggered, the window displays a snapshot of the object with date and time.

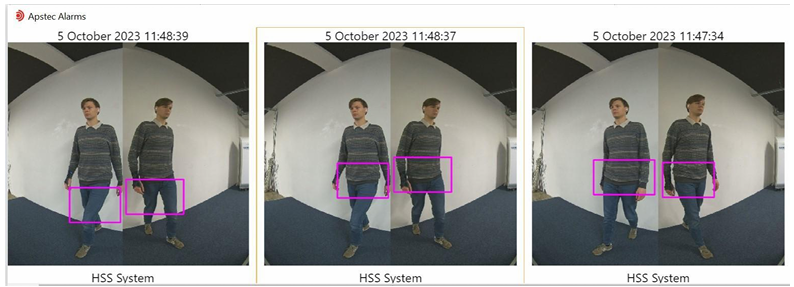

Alarm window with snapshots of potentially dangerous objects



Notes
The HSS system alerts the operator when a potentially dangerous object is detected. What happens next depends on how the system is configured.
