HSR.4B Hsr Client Interface For Mobile Devices
The HSR Client application is used to operate the system from mobile devices. To start working, launch the application from the desktop of a tablet or smartphone.
Once launched, the application connects to the HSR system via a Wi-Fi network. The connection is provided through a Wi-Fi router that is linked to the HSR local interface.
When the connection is successfully established, the application window will open. In normal operation mode, the status will display “Connected.”
If the HSR system detects a potentially dangerous target, the mobile device (for example, a tablet) receives an alarm notification.

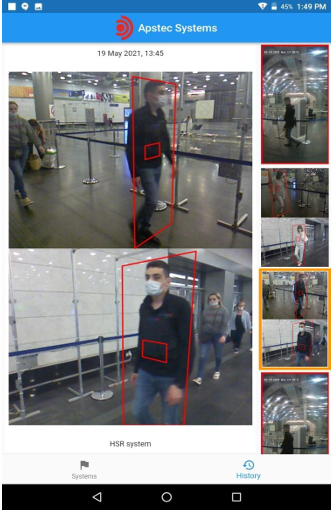

The application displays:
A photo image of the detected object
The HSR ID that generated the signal
The time and date of the event
The operator can review the history of recent alarms by swiping through the photos within the application.
To exit the application, press the Home button on the mobile device. In this case, the program continues running in the background and will keep sending notifications about alarms and system status changes.
To fully close the application, open the settings menu and press the Close button.
