HSR.4B TECHNICAL CHARACTERISTICS

HSR.4B TECHNICAL CHARACTERISTICS

Voltage and Power:

  • Operating voltage: ~220–240 V

  • Power consumption: 1.3 kW (for one-way people flow)


Design:

  • Protection level: IP20 (plastic casing)

  • Dimensions of one pillar:

    • With buffer bar: 642 × 1661 × 287 mm

    • Without buffer bar: 620 × 1661 × 276 mm


Installation Area:

  • Minimum required space: 4.1 × 5 meters (for Portal configuration)

  • Passage width: 1.2 m per direction (2 lines total)


Functionality:

  • Supported configurations:

    • One-way (Portal)

    • Two-way (Back-to-Back)

  • Operation mode: 24/7 continuous use

  • Analysis: Real-time

  • Automatic decision-making: Yes

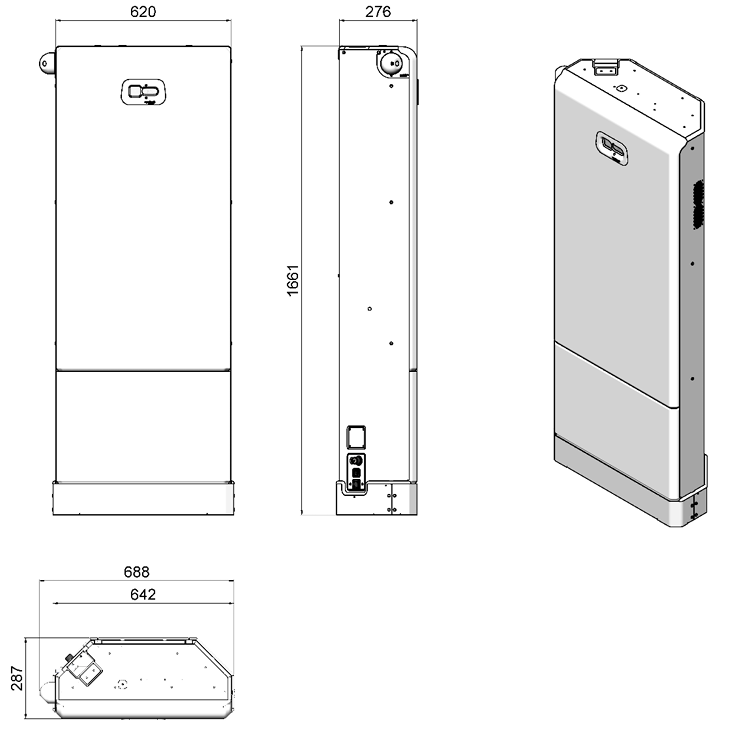

 Dimensions of one pillar. Both pillars’ dimensions are identical.
